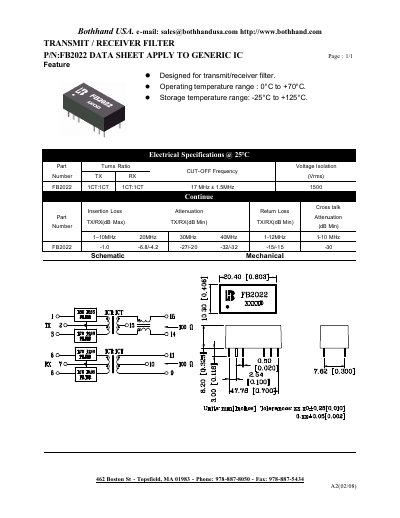

The FB2022 data sheet details specifications, temperature ranges, electrical performance, and a schematic for Bothhand USA’s transmit/receiver filter.
The FB2022 is a transmit/receiver filter designed by Bothhand USA. It operates from 0 °C to +70 °C and can be stored between –25 °C and +125 °C.
Key electrical parameters include a 1:1 turns ratio, 17 MHz ±1.5 MHz cutoff frequency, 1500 Vrms isolation, and insertion loss of –1 dB. The sheet also lists attenuation, return loss, crosstalk values and provides a schematic diagram.
| Operating temperature range | 0 °C to +70 °C |
|---|---|
| Storage temperature range | -25 °C to +125 °C |
It operates from 0 °C to +70 °C.
The filter can be stored between –25 °C and +125 °C.
