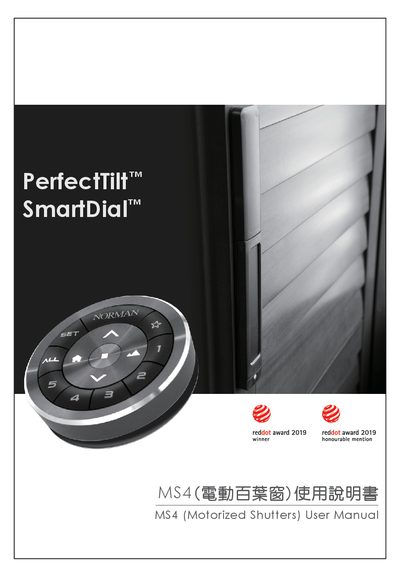

User manual for the PerfectTilt MS4 motorized shutters covering installation, setup, operation, safety and troubleshooting.
This manual provides step‑by‑step instructions for installing the PerfectTilt MS4 motor module, mounting the remote control, and configuring the optional Norman® router. It details how to power the motor module, perform calibration, and set up group pairing for multiple shutters.
The guide also includes safety guidelines for the built‑in lithium batteries, troubleshooting procedures for common issues, and technical specifications such as battery capacity, operating temperature range, and FCC compliance. This manual is written in Chinese.
| Battery voltage | 3.7 V |
|---|---|
| Battery capacity | 3000 mAh |
| Motor type | DC brushed motor |
| Interface | Water‑proof USB‑micro‑B receptacle |
Connect a 5 V / 1 A power source or charger to the motor module’s USB port with a Micro‑USB cable; the green LED flashes while charging and stays solid when fully charged.
Press the motor module button briefly to start pairing mode, then long‑press the remote’s SET key for 3 seconds; the remote’s middle key will flash and the module will join the selected group.
The device is rated for use between 0 °C and 55 °C.
