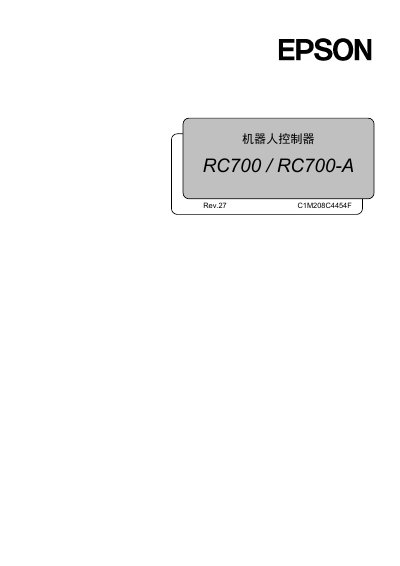

The Epson RC700/RC700-A robot controller user manual provides safety guidelines, specifications, setup, operation modes, and maintenance instructions.
This manual covers safe installation and operation of the Epson RC700 and RC700‑A robot controllers. It includes safety warnings, system configuration examples, and detailed wiring diagrams for power, Ethernet, RS‑232C, and optional I/O modules.
The document also describes how to connect a development PC, use the EPSON RC+ 7.0 software, perform backup and restore of controller settings, and maintain the hardware with part numbers and replacement procedures. This manual is written in Japanese.
| CPU | 32‑bit microprocessor |
|---|---|
| Number of Axes | 6 axes |
| Maximum Storage Capacity | 4 MB |
| Point Data Capacity | 1000 points per file |
| Standard I/O | 24 inputs, 16 outputs |
| Remote I/O (R‑I/O) | 2 inputs, 2 outputs |
| Backup Variable Area | up to 100 kB (~1000 variables) |
The controller can manage up to six axes at the same time.
No. The manual advises not to connect the controller to external Internet networks.
Up to three drive units can be connected to a single RC700 controller.
