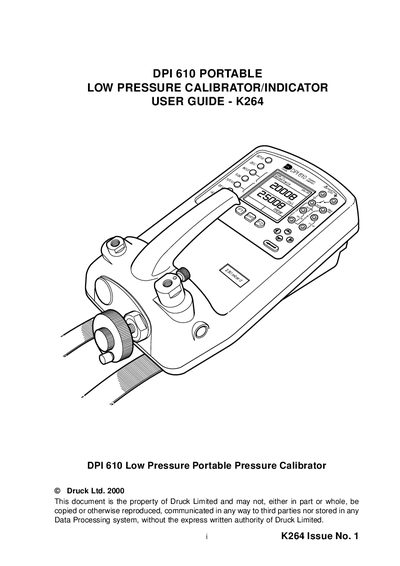

User guide for the Druck K264 DPI 610 low‑pressure portable pressure calibrator, covering safety, setup, test methods and calibration.
This manual provides safety instructions, preparation steps, and detailed test methods for both low‑volume and larger‑volume systems. It also explains calibration procedures, service information, and returned‑goods procedures for the K264 DPI 610 calibrator.
The document includes wiring and connection diagrams, operation of the volume adjuster, use of the hand‑pump, and guidance on recording test data with the Datalog or Snapshot functions.
| Maximum output pressure | 120 % of full‑scale pressure |
|---|---|
| Full‑scale differential output ranges | 2.5, 12.5, 25, 50, 75 or 150 mbar |
Press the ZERO key to zero the calibrator.
Ensure the device under test can withstand up to 120 % of the calibrator’s full‑scale pressure.
Only the test leads supplied with the instrument may be used.
