Start here

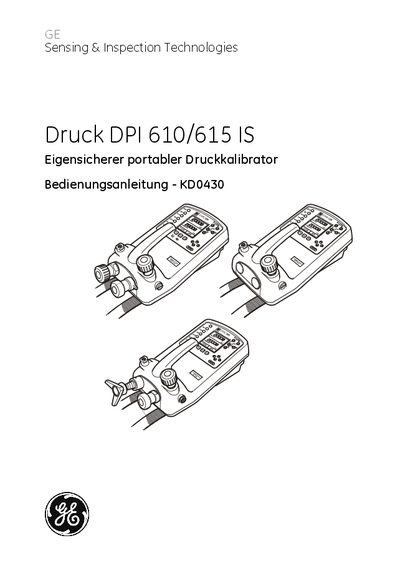

Druck DPI 610/615 IS Portable Pressure Calibrator User Manual
This manual explains the safety requirements and ATEX certification for the intrinsically safe DPI 610/615 IS pressure calibrators. It covers battery handling, installation precautions, and the required qualifications for service personnel.
The document details the operating modes, pressure ranges, electrical parameters, and calibration procedures, and includes technical data such as dimensions, weight, IP rating, and accuracy. It also provides the necessary certification information for use in potentially explosive atmospheres. This manual is written in German.
Druck DPI 610 specifications
| Pressure Range | -14.7 psi to 300 psi (up to 6000 psi with hydraulic actuator) |
|---|---|
| Voltage Measurement | +50V DC |
| Current Measurement | +55 mA DC |
| Battery Type | Rechargeable NiCad |
| Maximum Pressure Rating | 120% full scale |
Source: Druck DPI 610 Portable Pressure Calibrator/Indicator User Guide
All Druck DPI 610 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I zero the calibrator?
Press the ZERO key to zero the calibrator.
From: Druck K264 DPI 610 Low Pressure Portable Pressure Calibrator User Guide
What safety warning applies to the maximum differential pressure?
Ensure the device under test can withstand up to 120 % of the calibrator’s full‑scale pressure.
From: Druck K264 DPI 610 Low Pressure Portable Pressure Calibrator User Guide
What is the pressure range of the DPI 610?
The DPI 610 measures pressure from -14.7 psi to 300 psi, with a hydraulic actuator version extending this to 6000 psi.
From: Druck DPI 610 Portable Pressure Calibrator/Indicator User Guide
What voltage and current can the DPI 610 measure?
It can measure DC voltage up to +50V and DC current up to +55 mA.
From: Druck DPI 610 Portable Pressure Calibrator/Indicator User Guide
What pressure range does the DPI 610/615 cover?
The DPI 610/615 series can measure from 2.5 mbar up to 700 bar.
From: Druck DPI 610/615 Portable Pressure Calibrators User Manual
How many measurement values can be stored in the device?
The calibrator can store up to 10 000 measurement values in its internal memory.
From: Druck DPI 610/615 Portable Pressure Calibrators User Manual
