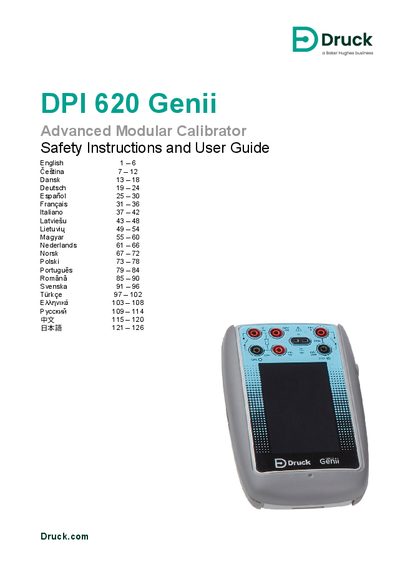

The Druck DPI 620G Safety Instructions and User Guide provides safety warnings, setup steps, and operating instructions for the battery‑powered DPI 620…
The DPI 620 Genii is a battery‑powered calibrator and HART® communicator that can measure electrical parameters, operate sources, and communicate via HART® and Foundation Fieldbus. It features a touch‑screen that can display up to six parameters and supports optional pressure modules.
The guide covers safety warnings, battery installation and charging, power‑on/off procedures, dashboard navigation, mode selection, and basic troubleshooting. It also lists optional accessories, over‑voltage categories, and references to the full data sheet for detailed specifications.
| Battery type | Lithium‑Polymer (Li‑Polymer) |
|---|---|
| Power supply input range | 100–240 V AC, 50‑60 Hz, 250 mA, CAT II |
| Charging time (DC power supply) | 6.5 hours |
| Charging time (Mini USB) | 13 hours |
| Display capability | Shows up to six parameters |
| Maximum AC probe voltage | 300 V CAT II |
Charging through the Mini USB connection takes about 13 hours.
The AC probe must not be connected to more than 300 V CAT II.
Four categories are defined: CAT I, CAT II, CAT III, and CAT IV, as per IEC 61010‑1.
