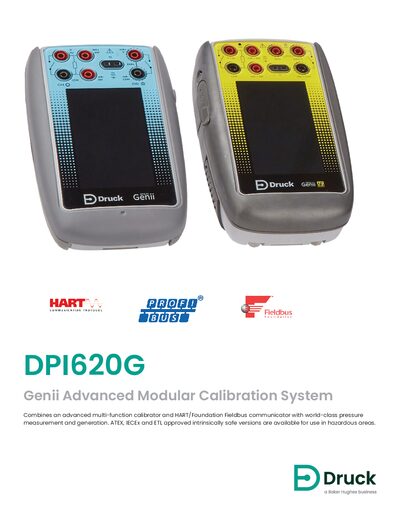

The Druck DPI620G Genii Calibration System manual provides operating instructions, specifications, and safety information for the multi‑function calibrator.
The DPI620G Genii is a modular, multi‑function calibrator and HART/Foundation Fieldbus communicator that can measure and source electrical, frequency, temperature and pressure signals. It consists of a handheld unit, interchangeable pressure modules, a pressure module carrier, and optional pressure‑generating base stations.
The system offers a high‑resolution touch display, Bluetooth and USB connectivity, and ATEX/IECEx/ETL approvals for hazardous areas. It includes free 4Sight2 Lite calibration software and supports both safe‑area and intrinsically safe configurations.
| Processor | 800 MHz |
|---|---|
| Memory | 512 MB SDRAM |
| Internal Flash | 4 GB |
| Display Size | 110 mm (4.3 in) diagonal |
| Weight | 575 g |
| Operating Temperature | -10°C to 50°C |
| Battery Capacity | 4600 mAh (minimum) |
| Connectivity | USB Type A, USB Type Mini B, Bluetooth |
The device provides USB Type A, USB Type Mini B, and Bluetooth connectivity.
In continuous measurement mode the battery lasts about 12 hours.
Yes, ATEX, IECEx and ETL approvals are available, and intrinsically safe versions exist.
