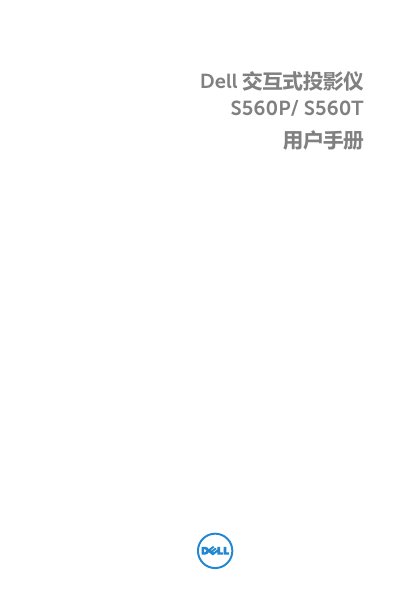

Dell S560P/S560T interactive projector user guide with setup, operation, troubleshooting and specifications.
This manual provides detailed information for the Dell S560P and S560T interactive projectors, covering everything from unpacking and hardware overview to connection options, image size adjustment, remote control, stylus use (S560P) and interactive touch (S560T). It also includes instructions for installing a wireless display adapter, maintenance procedures, and full technical specifications.
The guide contains safety warnings, system requirements, calibration steps, troubleshooting tips, and contact information for Dell support, helping users set up and operate the projector safely and efficiently. This manual is written in Chinese.
| Brightness | 3400 ANSI lumens (max) |
|---|---|
| Contrast ratio | Typical 1800:1 |
| Resolution | 1920 x 1080 (1080p) |
| Throw ratio | UST TR0.25 |
| Power consumption (normal mode) | 320 W ±10% @110 V |
| Weight | 10.36 lb (4.7 kg) |
| Dimensions (W × H × D) | 15.08 × 12.52 × 4.06 in |
| Operating temperature | 5 °C to 40 °C |
| Lamp life (normal mode) | Up to 3000 hours |
| Lamp life (ECO mode) | Up to 5000 hours |
The maintenance section (page 37) describes the lamp‑replacement procedure.
The projector should be used in an environment between 5 °C and 40 °C.
The projector has two HDMI inputs, supporting HDMI 1.4a.
Normal‑mode power consumption is 320 W ±10% at 110 V.
