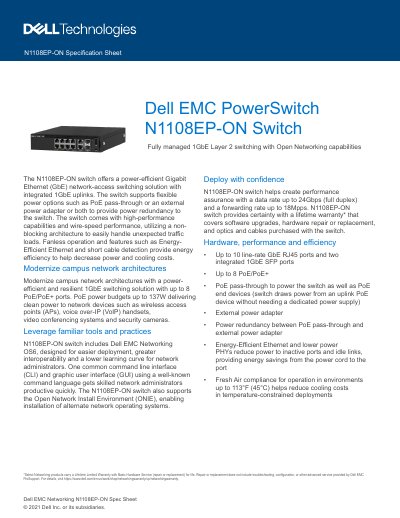

Specification sheet for the Dell PowerSwitch N1108EP-ON Gigabit Ethernet switch with PoE, fanless design and 24 Gbps fabric capacity.
The Dell PowerSwitch N1108EP-ON is a compact, fanless 1 GbE Layer 2 switch offering up to eight PoE/PoE+ ports and two uplink ports with optional PoE pass‑through. It supports flexible power options, including an external 280 W adapter and power‑redundancy between PoE and the adapter, delivering up to 137 W of PoE budget.
The switch provides wire‑speed performance with a non‑blocking architecture, 24 Gbps switching capacity, 18 Mpps forwarding rate, and extensive management features such as CLI, GUI, SNMP, RADIUS/TACACS+, and VLAN support. It meets multiple regulatory standards and includes a lifetime warranty for hardware and software upgrades.
| Ports | 8x 1GbE RJ‑45 PoE, 2x 1GbE RJ‑45 uplink, 2x 1GbE SFP |
|---|---|
| PoE power budget | up to 137 W |
| Maximum power consumption | 19.51 W |
| Switch fabric capacity | 24 Gbps |
| Forwarding rate | 18 Mpps (12 Gbps) |
| VLAN support | 512 VLANs |
| Fanless operation | Yes |
The switch consumes a maximum of 19.51 watts.
It supports up to 512 VLANs.
Yes, the switch operates without a fan.
