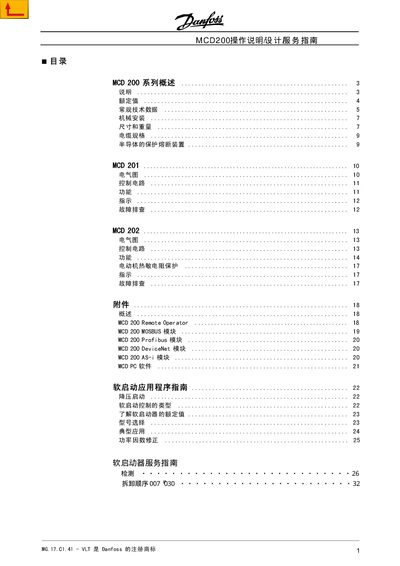

The Danfoss MCD200 series soft starter user manual provides installation, safety, wiring, and operation instructions for the MCD200, MCD201, and MCD202 devices.
This manual covers the Danfoss MCD200 series soft starters, including the base MCD200 model and the two variants MCD201 and MCD202. It provides detailed safety rules, installation guidelines, mechanical mounting options, wiring specifications, and functional descriptions.
The document also includes electrical diagrams, control circuit information, module options (Remote Operator, MOSBUS, Profibus, DeviceNet, AS‑i), software tools, and troubleshooting procedures, along with technical data such as ratings, dimensions, environmental limits, and recommended protective devices. This manual is written in Chinese.
| Input voltage (L1‑L3) | 200‑440 VAC (±10%/‑15%) |
|---|---|
| Control supply voltage (A1‑A3) | 24 VAC/VDC (±20%) |
| Control input terminal max voltage (N1/N2) | 300 VAC |
| IP protection rating | IP20 (models 007‑055) / IP00 (models 075‑110) |
| Operating temperature range | -10 °C to +60 °C |
| Relative humidity range | 5 % – 95 % RH |
| Rated short‑circuit current | 5 kA (models 007‑037) / 10 kA (models 045‑110) |
| Weight (MCD201) | 2.0 kg (4.4 lb) |
| Weight (MCD202) | 2.1 kg (4.6 lb) |
| Power factor correction capacitor connection | Must be connected on the mains side, not on the output |
Only qualified electricians may carry out the electrical installation, and the device must be disconnected from the mains before any maintenance.
The rated short‑circuit current for those models is 5 kA.
No, the capacitor must be connected on the mains side of the soft starter.
They have an IP20 protection rating.
