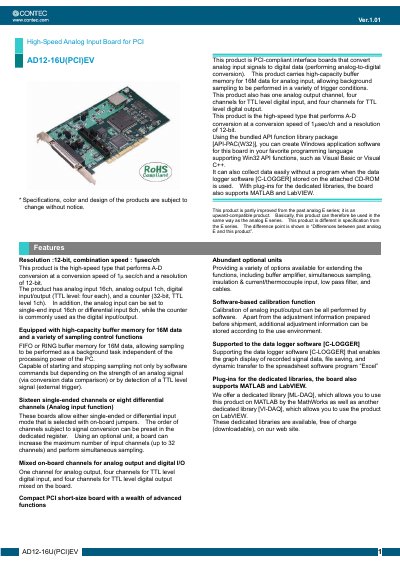

This datasheet details the CONTEC AD12-16U(PCI)EV, a PCI-compliant high-speed analog input board featuring 16 channels of A/D conversion at 1 μsec/ch.
The CONTEC AD12-16U(PCI)EV is a high-speed analog input board designed for PCI buses that converts analog input signals to digital data. It features a high-capacity buffer memory for 16M data, enabling background sampling independent of the PC's processing power. The board supports 16 single-ended or 8 differential analog input channels with a resolution of 12-bit and a conversion speed of 1 μsec/ch.
| Resolution | 12-bit |
|---|---|
| Conversion speed | 1 μsec/ch |
| Number of input channels | 16ch (Single-Ended) / 8ch (Differential) |
| Buffer memory | 16M data |
| Operating condition | 0 - 50°C, 10 - 90%RH |
| Power consumption | +5V 1000 mA (Max.) |
The board performs A-D conversion at a conversion speed of 1 μsec/ch.
Yes, the analog input can be set to single-end input 16ch or differential input 8ch.
