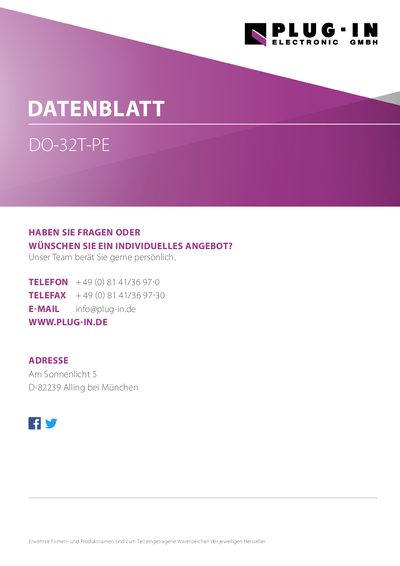

This datasheet describes the CONTEC DO-32T-PE, a PCI Express-compliant digital I/O board featuring 32 unisolated open-collector outputs.
The CONTEC DO-32T-PE is a PCI Express-compliant digital I/O board designed to provide 32 unisolated open-collector output channels. It supports a maximum output voltage of 30VDC and a current rating of 40mA per channel, with a response time within 200 nanoseconds. The board includes a 37-pin D-SUB connector and is compatible with Windows and Linux operating systems.
| Number of output signal channels | 32 channels (1 common) |
|---|---|
| Output voltage | 30VDC (Max.) |
| Output current | 40mA (per channel) (Max.) |
| Response time | Within 200nsec |
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 |
| Connector type | 37 pin D-SUB connector |
| Operating temperature | 0 - 50°C |
The maximum output voltage is 30VDC.
Yes, the board is compatible with Linux and includes a Linux version driver software.
No, each signal output must be pulled up at the external device as it is not pulled up internally.
