The Contec ECG100G user manual provides technical specifications, safety notices, operation instructions, and maintenance guidelines for the 1‑channel ECG…

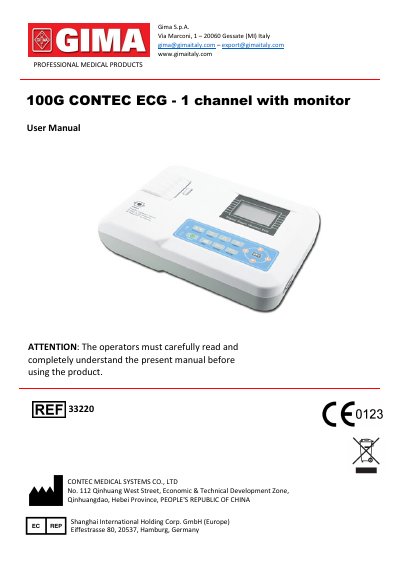

This manual describes the Contec ECG100G electrocardiograph, a single‑channel ECG device with a built‑in thermal printer and rechargeable lithium battery. It outlines the main technical specifications, including operating temperature, power requirements, input impedance, and recording capabilities, and provides detailed descriptions of the panel layout, keypad functions, and indicator lights.
The document also covers safety and security notices, proper grounding, battery handling, and maintenance procedures such as cleaning, fuse replacement, and warranty information. Electromagnetic compatibility guidelines and disposal instructions are included to ensure safe and compliant use in medical environments.
| Operating temperature | +5 °C ~ +35 °C |
|---|---|
| Power supply | AC 100‑240 V, 50/60 Hz or 7.4 V 2000 mAh rechargeable lithium battery |
| Input impedance | ≥50 MΩ |
| Frequency response | 0.05 Hz ~ 150 Hz (-3 dB) |
| Physical size | 315 mm × 215 mm × 77 mm |
The device is designed to operate in an ambient temperature from +5 °C to +35 °C.
It can be powered from AC 100‑240 V, 50/60 Hz or from a built‑in 7.4 V, 2000 mAh rechargeable lithium battery.
The ECG100G uses a standard 12‑lead configuration.
