A PCI bus digital I/O board featuring 16 photo-coupler isolated input and output channels with interrupt capabilities, suitable for Windows and Linux.

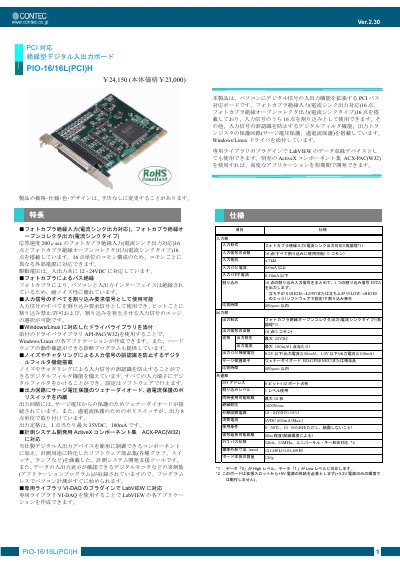

The Contec PIO-16/16L(PCI)H is a digital signal input/output expansion board designed for use with the PCI bus. It features 16 photo-coupler isolated input channels compatible with current sink output and 16 photo-coupler isolated open collector output channels of the current sink type. The device supports drive voltages between 12-24VDC. This manual is written in Japanese.
| Input Channels | 16 points (all usable as interrupt) |
|---|---|
| Output Channels | 16 points |
| Drive Voltage | 12 - 24VDC |
| Response Time | Within 200μsec |
| Max Output Current | 100mA per point |
| Operating Temperature | 0 - 50℃ |
The board supports Windows and Linux operating systems.
The rated output withstands up to 35VDC.
