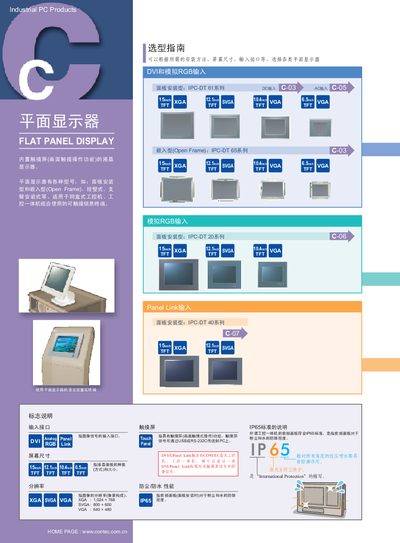

Selection guide for Contec IPC-DT flat panel displays covering models, specs, interfaces and installation options.
The Contec IPC-DT series includes a range of flat panel displays with built‑in touch screens for industrial PC applications. Models such as IPC‑DT 61, 65, 20, 40, 440, 400 and 30 are offered in various sizes and mounting styles (panel‑mount, open‑frame, wall‑mount, arm‑mount).\n\nEach display supports dual video inputs (DVI and analog RGB), USB or RS‑232C touch interfaces, and complies with IP65 protection for dust and water. Detailed dimensions, power options, and optional accessories like cable kits and mounting brackets are provided to help users select the appropriate unit. This manual is written in Chinese.
| Screen size | 15 inch TFT |
|---|---|
| Resolution | XGA 1024×768 |
| Video inputs | DVI and analog RGB |
| IP rating | IP65 |
| Power input | DC 12 V (±5 %) or AC 100‑240 V |
The displays support both DVI and analog RGB inputs.
The front panel meets the IP65 standard for dust and water protection.
Up to eight touch panels can be connected to a single USB port.
The IPC‑DT 61 series can be powered by a 12 V DC input or an AC input ranging from 85‑132 V or 170‑265 V.
