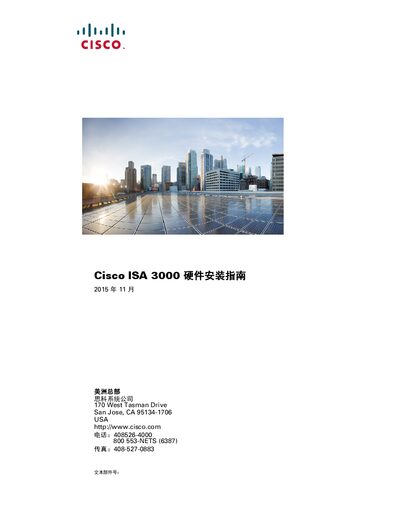

Installation guide for the Cisco ISA 3000 industrial security appliance, covering hardware setup, connections, initial configuration and specifications.
This guide provides step‑by‑step instructions for installing the Cisco ISA 3000 industrial security device, including required tools, DIN‑rail mounting, grounding and wiring. It also describes how to connect the appliance to a PC, power source and network, and how to perform the initial configuration using the CLI and ASDM.
The document includes a detailed hardware bypass mode description, LED status indicators, and a technical specifications section that lists dimensions, environmental limits, power requirements and compliance information. This manual is written in Chinese.
| Dimensions (H × W × D) | 13 cm × 11.2 cm × 16 cm |
|---|---|
| Weight | 2.15 kg |
| Operating Temperature | -40 °C to 60 °C |
| Relative Humidity | 0 % to 95 % non‑condensing |
| Ingress Protection | IP30 |
| DC Input Voltage Range | 9.6 VDC to 60 VDC |
| Maximum DC Input Current | 0.5 A @ 48 VDC, 1.0 A @ 24 VDC, 2.0 A @ 12 VDC |
The device measures 13 cm high, 11.2 cm wide and 16 cm deep.
It operates from –40 °C up to 60 °C.
Enter the command ‘hardware‑bypass manual gigabitethernet 1/1-1/2’ in the CLI.
An amber LED flashing on a pair of ports (1 & 2 or 3 & 4) shows that those ports are in bypass mode.
