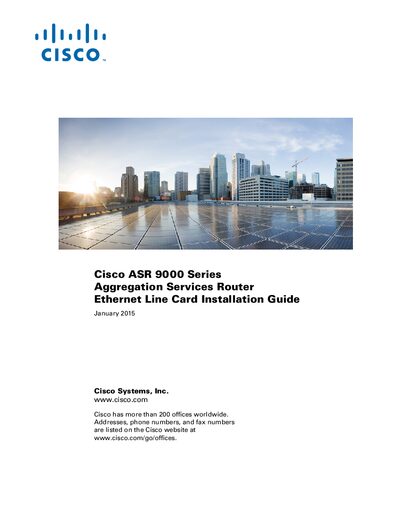

Installation guide for Cisco ASR 9000 Series Ethernet line cards with safety, wiring and verification procedures.
This guide provides step‑by‑step instructions for installing Ethernet line cards in the Cisco ASR 9000 Series Aggregation Services Router. It covers preparation, required tools, safety precautions, removal and insertion of line cards and modular port adapters, and cable management.
The document also details verification methods, troubleshooting tips, and technical specifications such as power consumption and transceiver module requirements.
| 2‑Port 10‑Gigabit Ethernet + 20‑Port Gigabit Ethernet Combination Line Card Power Consumption (77 °F) | 315 W |
|---|---|
| 4‑Port 10‑Gigabit Ethernet Line Card Power Consumption (77 °F) | 310 W |
| 8‑Port 10‑Gigabit Ethernet 80 Gbps Line Rate Card Power Consumption (77 °F) | 565 W |
Use the show commands provided in the guide to verify modular line card and port‑adapter status and to test network connectivity.
The document includes a list of required tools and equipment needed for safe removal and insertion of line cards and modular adapters.
