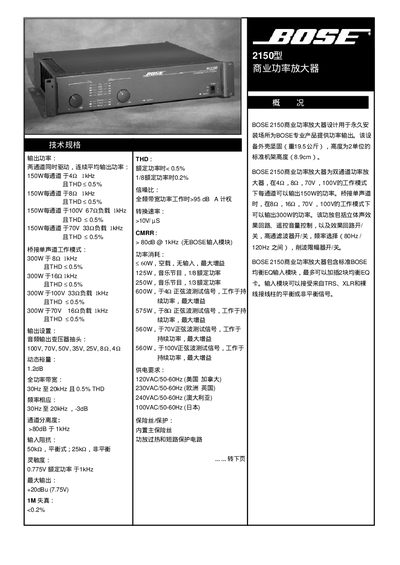

Technical specifications, installation instructions and certifications for the Bose 2150 audio power amplifier.
The Bose 2150 is a professional audio power amplifier offering up to 300 W per channel into 8 Ω loads with low distortion. The manual provides detailed electrical characteristics, recommended input levels, frequency response and protection features.
Installation guidelines, physical dimensions, connector options (TRS and XLR) and compliance information (UL6500, EN60065, FCC, etc.) are included to assist system integrators and end‑users in setting up the amplifier safely and efficiently. This manual is written in Chinese.
| Output Power (4 Ω, 1 kHz) | 150 W |
|---|---|
| Output Power (8 Ω, 1 kHz) | 300 W |
| Frequency Response | 30 Hz – 20 kHz, -3 dB |
| Dimensions (W × H × D) | 89 mm × 483 mm × 401 mm |
The amplifier can deliver up to 300 W into an 8 Ω load at 1 kHz with THD ≤ 0.5 %.
The unit includes balanced TRS and XLR connectors for line‑level inputs.
