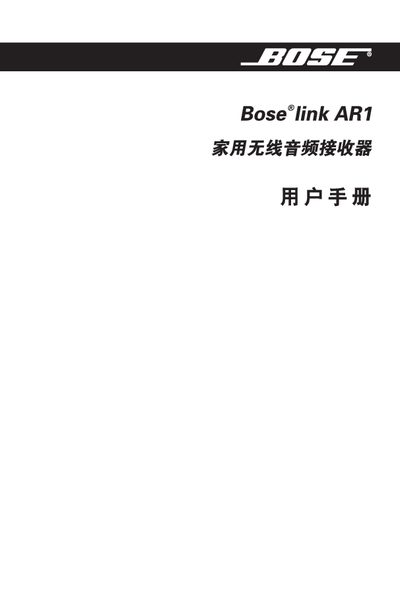

This manual covers safety precautions for indoor use, including warnings about moisture, fire hazards, and proper ventilation. It explains how to connect the AR1 receiver to a Bose link AL8 transmitter or compatible legacy products using the Bose link A cable and optional RCA/DIN adapters.
Installation steps describe power connection, indicator LED meanings, and troubleshooting tips such as adjusting antenna placement or checking signal strength. The document also lists technical specifications, warranty information, and contact details for Bose support. This manual is written in Chinese.
| Power Input | 9.5V~ 1.0A |
|---|---|
| Operating Frequency | 2.4000 MHz – 2.4835 MHz |
| Output Level | 2 Vrms (fixed) |
| Dimensions | 3" H × 6" W × 6" D (7.6 × 15.2 × 15.2 cm) |
| Weight | 1 lb (0.5 kg) |
A solid green LED indicates a stable connection, while a flashing or steady orange LED signals a communication fault.
No, the manual states the unit must be used indoors only.
It requires a 9.5 V power source delivering up to 1.0 A.
