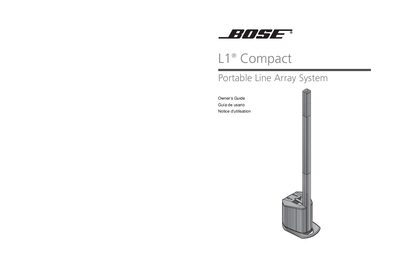

The L1® Compact Portable Line Array System is a lightweight, all‑in‑one speaker solution designed for musicians, DJs, and presenters. It combines a powered loudspeaker array, a collapsible stand, and optional extensions that can be configured for audiences of about 100 people.
This Owner’s Guide covers safety warnings, quick‑setup procedures for both collapsed and extended configurations, connection and control instructions, troubleshooting, care and maintenance, warranty registration, and technical specifications such as power rating and dimensions.
| AC power rating | 100‑240 V 50/60 Hz 200 W max |
|---|---|
| Peak inrush current | 230 V: 18.2 A, 120 V: 9.7 A |
| Power Stand dimensions | 16½" H × 13¼" W × 16¾" D (41.8 cm × 33.9 cm × 42.6 cm) |
| Power Stand weight | 24.6 lb (11.2 kg) |
| Loudspeaker Array dimensions | 16" H × 2¾" W × 2¾" D (40.8 cm × 7 cm × 7.1 cm) |
| Loudspeaker Array weight | 3.0 lb (1.35 kg) |
| Extensions dimensions | 32½" H × 2¾" W × 2¾" D (83 cm × 7 cm × 7.1 cm) |
| Extensions weight | 2.3 lb (1.05 kg) each |
| Shipping carton weight (loudspeakers) | 30.4 lb (13.8 kg) |
