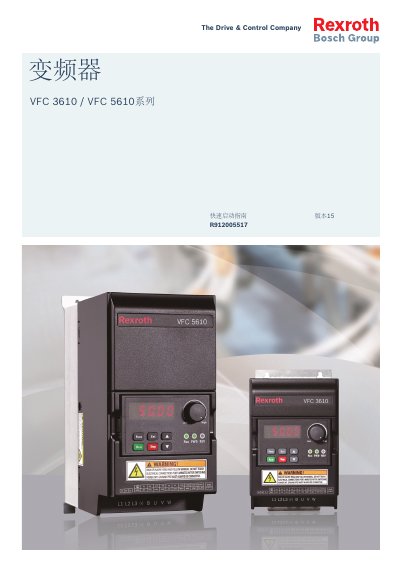

Bosch Rexroth VFC 3610/5610 Variable Frequency Drive Quick Start Guide

About this manual

This Quick Start Guide covers the essential steps to get the VFC 3610 and VFC 5610 variable frequency drives operational. It includes visual inspection procedures, environmental requirements for installation, and guidelines for DIN rail mounting with specific spacing dimensions.

The guide details electrical connection methods for main and control circuits, including cable specifications and terminal assignments. It also explains the startup process using LED and LCD operator panels, parameter setting groups (System, Power, Motor, Control), and provides a list of diagnostic status codes and fault descriptions. This manual is written in Chinese.

What's inside

• Structure Installation
• Electrical Connection
• Startup Process
• Parameter List
• Diagnosis

Frequently asked questions

What does fault code OC-2 indicate?

Fault code OC-2 indicates overcurrent during motor acceleration.

What is the rated operating temperature range for the VFC 3610 / VFC 5610 drive?

The drive is rated for an ambient temperature between -10 and 40 °C.

What is the maximum rated altitude for installing this drive?

The drive must be installed at an altitude of 1,000 m or less.

What is the minimum distance required between the drive and the top of the control cabinet?

The minimum distance from the top is 125 mm for models 0K40 through 90K0.
