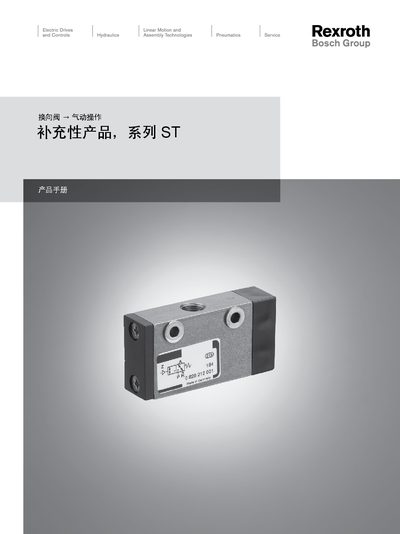

This manual provides technical specifications, material information, and accessory details for Bosch Rexroth ST series 2/3-way and 2/5-way pneumatic…
The document serves as a supplementary product guide for the Bosch Rexroth ST series of pneumatic directional valves. It covers both 2/3-way and 2/5-way valve configurations, detailing their technical specifications such as flow rates (Qn = 280 l/min), connection types (tube connections with G 1/8 outlets), and operating conditions including pressure ranges from -0.95 to 10 bar. This manual is written in Chinese.
| Rated Flow Qn | 280 l/min |
|---|---|
| Operating Pressure Range | -0.95 bar / 10 bar |
| Operating Temperature Range | -15°C / +80°C |
| Medium Particle Size Max. | 5 µm |
The valves use a sliding valve with metal sealing.
Yes, the product can only be operated using lubricated compressed air.
