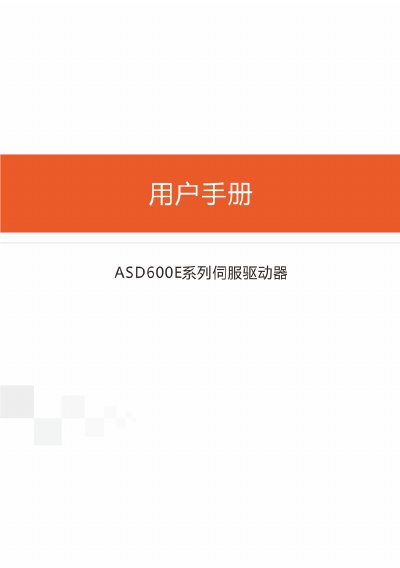

The ASD600E AC permanent‑magnet synchronous motor servo driver user manual provides safety instructions, installation, wiring, operation, parameter settings…
This manual covers the ASD600E AC permanent‑magnet synchronous motor servo driver. It begins with safety precautions, including warnings about high voltage and high temperature, and provides guidelines for unpacking and inspection. Detailed installation instructions describe proper mounting orientation, environmental requirements, and grounding.
The document then explains wiring diagrams for power input (single‑phase 220 V or three‑phase 400 V), signal connectors, and communication ports (RS‑232, RS‑485). Subsequent sections describe operating modes (position, speed, torque), parameter configuration, gain adjustment, communication functions, and fault handling, with appendices listing parameter tables and connector pin assignments. This manual is written in Chinese.
| Power range (three‑phase) | 1.0 kW–7.5 kW |
|---|---|
| Input voltage range | AC 230 V ± 15 % |
| Control method | Vector control, SVPWM |
| Auxiliary power supply | DC 12 V–24 V |
| Protection functions | Over‑current, over‑voltage, overload, over‑temperature, encoder fault |
