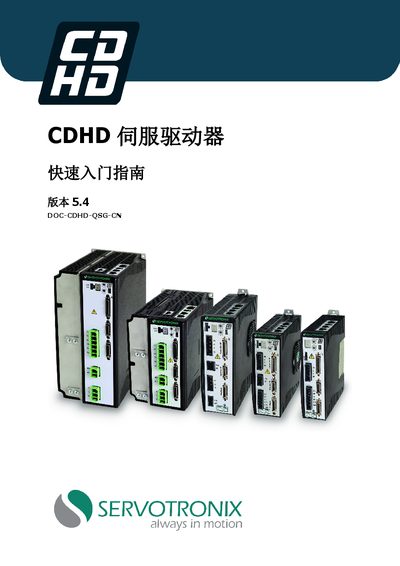

Quick start guide for Servotronix CDHD servo drives covering installation, wiring, safety and basic configuration.
The Servotronix CDHD Quick Start Guide provides step‑by‑step instructions for installing and configuring CDHD servo drives. It includes safety warnings, required hardware and tools, computer system requirements, and wiring and pin‑definition diagrams for both 120/240 VAC and 400/480 VAC models.
The guide also describes the control‑board and power‑board interfaces, software setup with ServoStudio, and troubleshooting of common fault codes. All information is presented in Chinese and is intended for qualified personnel familiar with electrical and mechanical safety practices. This manual is written in Chinese.
| Control board input power | 24 VDC |
|---|---|
| Single‑phase input voltage options | 120 VAC or 240 VAC, 50/60 Hz |
| Three‑phase input voltage options | 120‑240 VAC, 400‑480 VAC, 50/60 Hz |
| Analog input configuration | 1 port – 16 bit; 2 ports – 14 bit |
| Power board interfaces (400/480 VAC models) | P1 STO, P2 24 VDC logic, P3 AC input & regeneration, P4 Brake, P5 Motor |
Use the rotary switch on the drive to set the address before powering up.
Windows XP‑SP3 or Windows 7 are supported.
