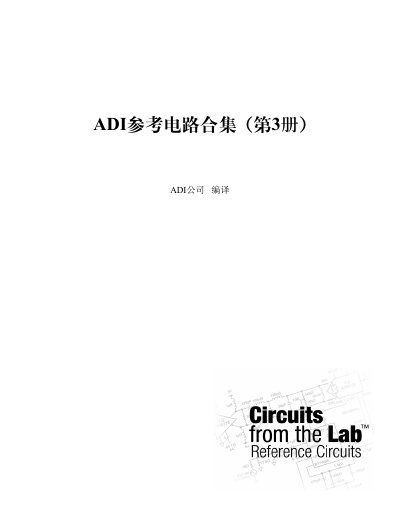

A compilation of verified reference circuits from Analog Devices, organized by circuit type and application.
This document presents a large set of reference circuit designs created and validated by Analog Devices engineers. Each circuit includes design notes, typical specifications, and recommended component selections, and is intended for use with ADI products.
The collection is divided into sections by circuit type (e.g., ADC, DAC, sensor interfaces) and by application area such as automotive, communications, medical, power management, and more. Detailed schematics, performance tables, and layout guidelines are provided for each design. This manual is written in Chinese.
| Sensitivity | 55 nA/ppm to 100 nA/ppm |
|---|---|
| Response time | <30 seconds |
The sensor has a sensitivity ranging from 55 nA/ppm to 100 nA/ppm (typical 65 nA/ppm).
The typical response time (t90) from 0 ppm to 400 ppm CO is less than 30 seconds.
