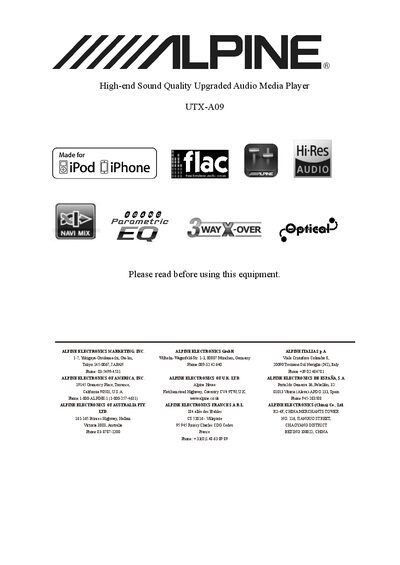

The Alpine UTX‑A09 user manual provides operating instructions, safety warnings, installation tips, and specifications for this high‑end audio media player.
This manual explains how to install, operate, and maintain the Alpine UTX‑A09 high‑end audio media player. It includes safety warnings, cleaning instructions, temperature limits, and guidance for proper mounting in a vehicle.
Key sections cover USB and Bluetooth connections, source selection, volume control, radio tuning, presetting stations, file format support, and detailed technical specifications. The document also lists accessories and provides troubleshooting tips.
| FM Tuner Tuning Range | 87.5~108.0 MHz |
|---|---|
| FM Sensitivity | 15.8 dBf (1.7 µV/75 Ω) |
| FM Signal‑to‑Noise Ratio | 60 dB |
| AM Tuner Tuning Range | 531~1602 kHz |
| AM Sensitivity | 32 µV (S/N: 20 dB) |
| AM Signal‑to‑Noise Ratio | 50 dB |
| USB Rear Power Consumption | 1 A |
| Maximum Number of Songs | 10,000 |
| Supported USB File Systems | FAT16, FAT32, exFAT |
| Bluetooth Version | 4.0 |
| Power Requirement | 14.4 V DC (11‑16 V allowed) |
| Power Output | 22 W × 4 (1 kHz, 5 % THD, 4 Ω load) |
| Weight | 0.8 kg |
| Head Unit Size | W 178 mm × H 50 mm × D 146 mm |
| Controller Size | W 95 mm × H 69 mm × D 20 mm |
The unit can play back up to 10,000 songs in total.
FAT16, FAT32 and exFAT are supported for USB memory and MTP devices.
Press and hold the button for at least 2 seconds to switch to AUX Mix mode.
