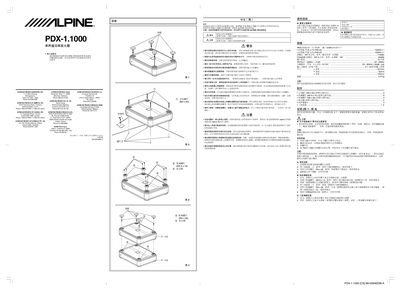

The Alpine PDX-1.1000 audio amplifier user manual provides installation steps, wiring diagrams, safety warnings, and specifications for proper vehicle…
This manual explains how to install and operate the Alpine PDX-1.1000 mono‑channel car audio amplifier. It includes safety precautions, wiring instructions, and adjustment procedures to ensure reliable performance in a vehicle environment.
Key sections cover mechanical installation, electrical connections, gain and crossover settings, troubleshooting, and detailed technical specifications such as power output, signal‑to‑noise ratio, and dimensions.
| RMS continuous power (4 Ω) | 1000 W |
|---|---|
| RMS continuous power (2 Ω) | 1000 W |
| Signal‑to‑noise ratio | 80 dBA |
| Frequency response | 200 Hz / -3 dB |
| Input sensitivity | 0.1 V – 8.0 V |
| Dimensions (W × H) | 257 mm × 62 mm |
Set the input gain selector to its minimum position, play a dynamic CD source, increase the head‑unit volume until distortion appears, then back off one step so the sound is clear but loud.
Turn the LP FILTER knob to select a crossover point between 50 Hz and 200 Hz, depending on the speaker configuration.
