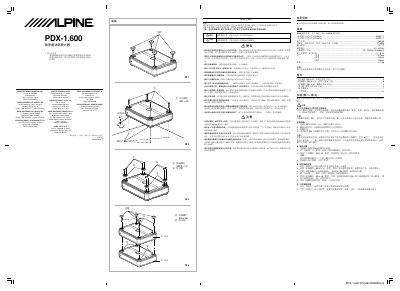

PDX-1.600 R Mono Power Amplifier Installation Manual, introduces the features and characteristics of the product and how to use it.
This manual explains how to safely install and operate the Alpine PDX-1.600 car audio power amplifier. It includes safety warnings, recommended mounting methods, wiring instructions, and gain‑adjustment procedures.
Detailed sections cover the amplifier’s electrical specifications, connector types, optional accessories, and troubleshooting tips to ensure reliable performance in a vehicle environment. This manual is written in Chinese.
| RMS continuous power (4 Ω) | 600 W |
|---|---|
| RMS continuous power (2 Ω) | 600 W |
| Maximum power | 1500 W |
| Sensitivity (IHF A‑weighting) | 110 dB |
| Input impedance | 10 kΩ |
| Frequency response | 0 – 200 Hz |
| Crossover frequency (adjustable) | 50 – 200 Hz |
| Input sensitivity | 0.1 – 8.0 V |
| Dimensions (W × H × D) | 257 mm × 62 mm × 192 mm |
| Weight | 3.11 kg |
Install a 3 A fuse close to the vehicle’s ignition source to protect the amplifier and the car’s electrical system.
Use 21 mm² (specified as “21mm?*-13mms”) power cable for the main power leads.
The amplifier must be powered from a 12 V car electrical system; other voltages may cause fire or electric shock.
