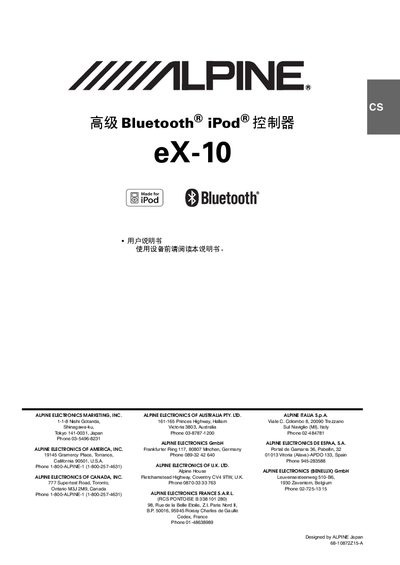

This document provides instructions for using the advanced Bluetooth® iPod® controller eX-10 designed by ALPINE Japan. It provides detailed information on the features and operation of the product.
This manual provides step‑by‑step instructions for installing the eX‑10 controller in a vehicle, connecting the display, microphone and power supply, and replacing the CR2025 battery. Safety warnings and usage guidelines are included to ensure safe operation while driving.
It also details how to pair Bluetooth devices, control iPod playback, adjust audio output (FM transmitter or AUX), use hands‑free phone functions, and troubleshoot common issues such as loss of Bluetooth connection or iPod recognition problems. This manual is written in Chinese.
| Bluetooth version | 1.2 |
|---|---|
| Maximum output power | +4 dBm (Power class 2) |
| Battery type | CR2025 |
| Dimensions (display unit) | 36 mm × 100 mm × 12.4 mm |
| Weight (display unit, without battery) | 31 g |
| Power requirement | 14.4 V DC (allowed 11‑16 V) |
Open the battery cover, slide it out, insert a new CR2025 battery with the (+) side up, and close the cover.
Up to five Bluetooth compatible phones or audio devices can be paired; a sixth device will cause the oldest connection to be dropped.
The controller must be used with a 12 V car power source (acceptable range 11‑16 V).
Turn the power off, then on again; if the problem persists, check the fuse, connections, and contact an Alpine dealer.
