The PocketCinema Z20 is a mobile pico projector with an integrated HD camcorder, 5 MP camera, and built‑in battery.
The PocketCinema Z20 combines a pico projector, HD camcorder and 5‑megapixel camera in a compact, battery‑powered device. It can project images up to 165 cm (65") diagonal and record 720p video while storing photos and videos on its 2 GB internal memory or an optional MicroSD card up to 32 GB.

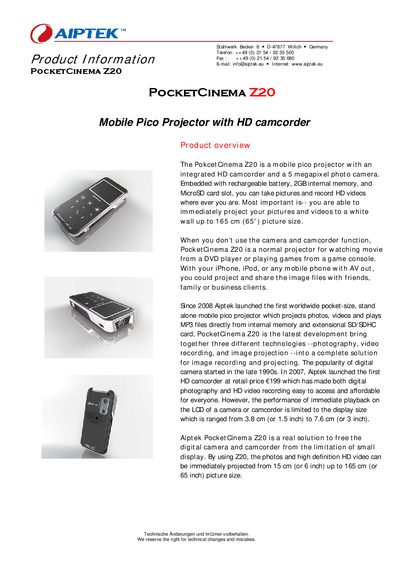

The unit uses an RGB LED light source with a 20,000‑hour lifetime, offers HDMI and AV‑in connectivity, and includes a remote control and metal tripod for presentations. Technical specifications such as resolution, luminous flux and battery life are listed in the document.
| Optical Technology | LCoS (Liquid crystal on silicon) |
|---|---|
| Light Source | RGB LED, lifetime up to 20,000 hours |
| Resolution | 640 × 480 (VGA) |
| Luminous Flux | 15 lumens (AC mode) / 12 lumens (battery mode) |
| Maximum Projection Size | 6" ~ 65" (15 cm ~ 165 cm) diagonal |
| Projection Distance | 19 cm ~ 206 cm |
| Internal Memory | 2 GB |
| External Memory | MicroSD card slot up to 32 GB |
| Battery Capacity | 2100 mAh, approx. 70 min runtime |
| Weight | 190 g |
| Dimensions | 125 × 62 × 24 mm |
It can project images up to 165 cm (65") diagonal on a white wall.
The device includes 2 GB of internal memory and supports a MicroSD card up to 32 GB.
It records HD 720p (1280 × 720) video.
It uses an RGB LED light source with a lifetime of up to 20,000 hours.
