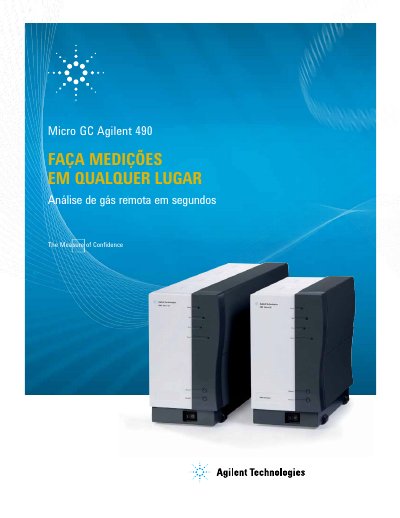

The Agilent Micro GC 490 is a compact, robust remote gas analyzer offering laboratory-quality results in seconds for field applications.
The Agilent Micro GC 490 is a fifth-generation gas chromatography analyzer designed for remote measurements and field use. It features a compact chassis available in rack-mounted or portable configurations, capable of generating data quickly to support business decisions.
The instrument utilizes advanced MEMS technology with micro-machined thermal conductivity detectors (μTCD) and injection systems to achieve high sensitivity and inert flow paths. It supports up to four parallel channels with customizable parameters for temperature, flow rate, and calibration, making it suitable for a wide range of gas analysis applications. This manual is written in Portuguese.
| Detection Limit (WCOT columns) | 0.5 ppm |
|---|---|
| Detection Limit (PLOT columns) | 2 ppm |
| Injection Volume Range | 1 μL to 10 μL |
| Injector Temperature Limit | 110° C |
| Carrier Gas Consumption Reduction | ~10% vs Benchtop GC |
The micro-machined thermal conductivity detector achieves a detection limit of 0.5 ppm for specific WCOT capillary columns.
Yes, the system can be customized with up to four exclusive columns executed in parallel, each with its own calibration and settings.
