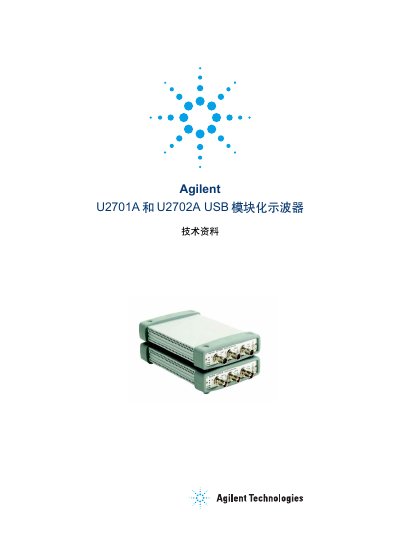

The Agilent U2701A and U2702A USB modular oscilloscopes offer 100 MHz/200 MHz bandwidth, up to 1 GSa/s sampling, 32 Mpts memory, and USB 2.0 connectivity.
The U2701A and U2702A are USB‑modular oscilloscopes that combine high‑performance features with a compact, portable design. They provide bandwidths of 100 MHz (U2701A) and 200 MHz (U2702A), advanced triggering modes, automatic measurements, FFT analysis, and dual‑work capability for standalone or modular system use.
The instruments include a 32 Mpts deep memory, up to 1 GSa/s real‑time sampling (500 Msa/s per channel), and a high‑speed USB 2.0 interface. Standard accessories such as power adapters, USB cables, and passive probes are supplied, and optional accessories expand measurement range and probe options. Detailed specifications cover input impedance, voltage ranges, environmental limits, and safety standards. This manual is written in Chinese.
| Bandwidth | 100 MHz (U2701A) / 200 MHz (U2702A) |
|---|---|
| Maximum Sampling Rate | Up to 1 GSa/s (500 Msa/s per channel) |
| Memory Depth | 32 Mpts |
| USB Interface | High‑speed USB 2.0 (USBTMC 488.2) |
| Power Consumption | 12 V DC, 2 A |
| Operating Temperature | 0 °C to 50 °C |
| Dimensions (W×D×H) | 117 mm × 180 mm × 41 mm (with rubber cover) |
| Weight | 534 g (with rubber cover) |
| Input Impedance | 1 MΩ (≈16 pF) |
The oscilloscopes can sample up to 1 GSa/s in interleaved mode, which equals 500 Msa/s per channel.
Standard accessories include a 12 V 2 A AC/DC power adapter, power cable, USB A‑to‑Mini‑B cable, and passive probes (10:1, 150 MHz for U2701A and 10:1, 300 MHz for U2702A).
The devices are compatible with high‑speed USB 2.0 and the USBTMC 488.2 standard.
Both models come with a one‑year warranty.
