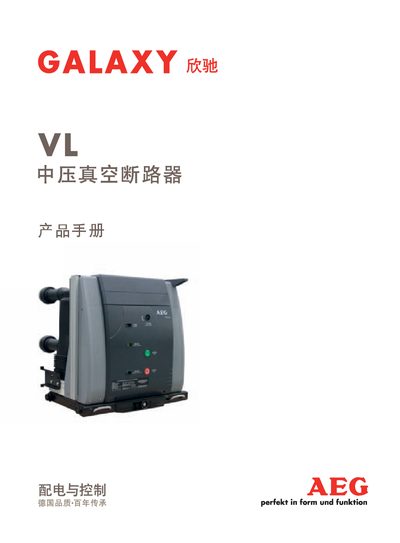

This manual covers the AEG Galaxy VL medium voltage vacuum circuit breaker, detailing its features, technical parameters, and application solutions for…
The document provides a comprehensive user guide for the AEG Galaxy VL medium voltage vacuum circuit breaker. It highlights the product's reliability derived from AEG's century-long heritage in electrical engineering and its compliance with GB, DL, and IEC standards.
Key features include a patented fixed bushing design, environmental adaptability up to 40°C and 4700 meters altitude, and modular spring or permanent magnet operating mechanisms. The manual outlines various product configurations based on voltage, current ratings, and installation types (fixed or handcart). This manual is written in Chinese.
| Rated Voltage | 12, 24, 40.5 kV |
|---|---|
| Rated Short-Circuit Breaking Current | 25, 31.5, 40, 50 kA |
| Operating Mechanism Life (Spring) | 60,000 times |
| Operating Mechanism Life (Permanent Magnet) | 100,000 times |
| Salt Spray Test Resistance | 500 hours |
It indicates a Galaxy series handcart-mounted medium voltage vacuum circuit breaker with a rated voltage of 12kV, rated current of 1250A, and short-circuit breaking capacity of 40kA.
The product can withstand temperatures ranging from -25°C to +40°C.
Yes, it is designed to pass extreme tests up to an altitude of 4700 meters.
