IC-M700PRO is a marine VHF transceiver produced by ICOM. It has a 2182kHz dual tone alarm function, which can be used to send a distress signal on board.

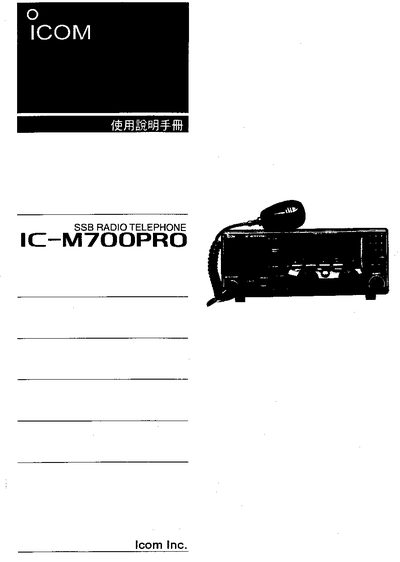

This manual covers safe handling, installation, and operation of the ICOM IC-M700PRO marine SSB radio. It includes safety warnings, emergency call procedures, and detailed descriptions of the front panel controls.
The document also provides technical specifications such as frequency coverage, transmit power, channel configuration, power requirements, and environmental limits, along with troubleshooting steps and optional accessories. This manual is written in Chinese.
| Receive frequency coverage | 500 kHz – 29.999 MHz |
|---|---|
| Transmit power (PEP) | 150 W (optional) |
| Number of channels | 150 (3 groups of 50) |
| Operating temperature range | -30 °C to +60 °C |
| Power supply | 13.6 V DC ± 15 % |
Press the 2182 kHz button, then hold the ALARM and TX FREQ buttons for at least 30 seconds to transmit the emergency signal.
The radio requires a 13.6 V DC power supply with a tolerance of ±15 %.
It supports up to 150 channels, divided into three groups of 50 channels each.
The device can operate from –30 °C up to +60 °C.
