The BDL4221V is a 42-inch LCD monitor from Philips with a wide-screen WXGA 1366 x 768 resolution for clearer images. The monitor features a metal bezel and a metal back cover for durability. It also has security features to prevent unauthorized control. The display is network-controllable for remote management, and enhanced scaling supports tiled matrix applications. VGA loop enables daisy-chaining of multiple displays, and it can be operated in portrait mode. It is quiet and reliable with fanless operation.
The Philips BDL4221V is a 42‑inch WXGA LCD display designed for public and commercial use. It offers a 1366 × 768 pixel resolution, high brightness, and a durable metal bezel.

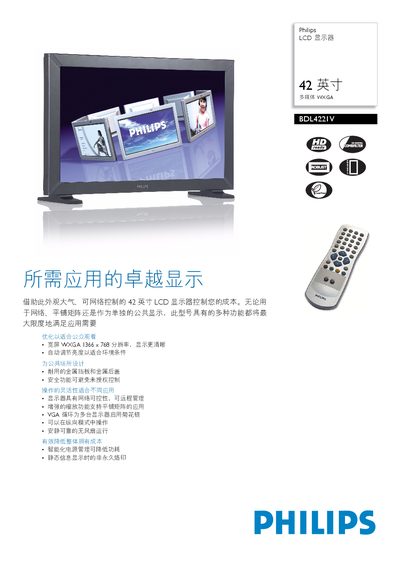

The manual covers safety information, RS232 remote control, installation dimensions, connector options, and warranty details, helping users set up and operate the display efficiently. This manual is written in Chinese.
| Panel size | 42 inches / 106.7 cm |
|---|---|
| Resolution | 1366 × 768 pixels |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.227 × 0.68 mm |
| Brightness | 600 cd/m² |
| Contrast ratio | 1200:1 |
| Color gamut | 16.7 million colors |
| Viewing angle | 178° / 178° (H/V) |
| Response time | 10 ms |
| Refresh rate | 60 Hz |
| Horizontal frequency | 30‑63 kHz |
| Vertical frequency | 56‑75 Hz |
| Typical power consumption | 140 W (PC) |
Yes, the BDL4221V supports RS232 remote control for configuration and operation.
The display has a brightness of 600 cd/m².
