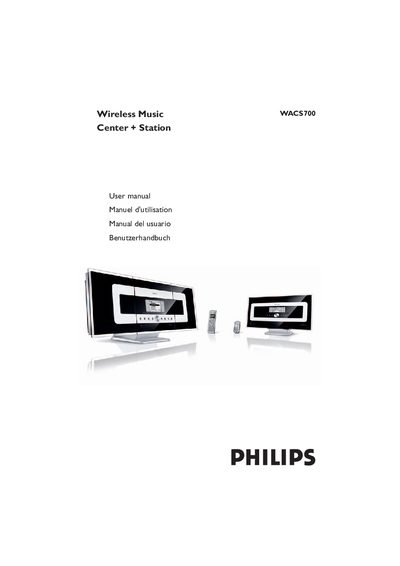

This document is the user manual for WACS700 Wireless Music Center + Station, providing detailed instructions and important notes for users.
The WACS700 combines a wireless music center (WAC700) and up to five satellite stations (WAS700) for whole‑home audio streaming via Wi‑Fi. This manual explains how to install the units, connect power and antennas, configure Wi‑Fi, and use the remote controls and on‑screen functions.
It also covers safety precautions, maintenance, detailed technical specifications, and troubleshooting tips, plus an appendix with wall‑mounting instructions for qualified installers.
| General AC Power (WAC700) | 220V ±10% |
|---|---|
| Active Power Consumption (WAC700) | < 35W |
| Standby Power (WAC700) | < 18W |
| Dimensions (WAC700) | 608 x 303 x 175 mm |
| Dimensions (WAS700) | 360 x 283 x 128 mm |
| Weight (WAC700) | 7.7 kg |
| Amplifier Output Power (WAC700) | 2 x 15W + 2 x 25W |
| Amplifier Output Power (WAS700) | 2 x 5W + 1 x 10W |
| Wireless Standard | 802.11g (backwards compatible 802.11b) |
| Wireless Security | WEP (64/128‑bit), WPA‑PSK |
| FM Tuner Range | 87.5‑108 MHz |
| HDD Storage Capacity (WAC700) | 40 GB* |
| Recording Quality | 128 kbps or 160 kbps |
Remove the fuse cover, replace the fuse with a BS1362 5 Amp approved type, and refit the cover.
Up to five WAS700 stations can be connected to a WAC700 Center.
It uses IEEE 802.11g, which is backwards compatible with 802.11b.
Use the supplied mounting kits, drill the marked holes, fix the brackets with suitable screws, and have a qualified person perform the installation.
