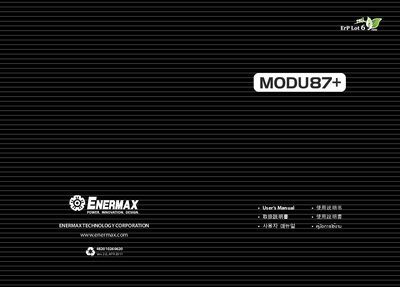

This manual provides an overview of ENERMAX MODU87+ series power supply's features and specifications.
This ENERMAX MODU87+ series power supply manual outlines safety warnings, warranty information and proper handling procedures. Only authorized technicians may open the case, and the unit must be kept away from heat, moisture, magnetic fields and direct sunlight.
The document lists detailed electrical specifications, connector types, modular cable options, boot‑up procedures and built‑in protection features such as over‑current, over‑voltage, under‑voltage, over‑power, over‑temperature, short‑circuit, surge and inrush protection. This manual is written in Chinese.
| AC Input Voltage | 100‑240V AC, 50‑60Hz (max 90‑265V, 47‑63Hz) |
|---|---|
| AC Input Current (EMG500AWT) | 6.5‑3A |
| DC Output 3.3V | 0‑20A, 100W |
| DC Output 5V | 0‑20A |
| DC Output 12V1 | 0‑25A, 492W (41A) |
Only a technician authorized by ENERMAX may perform maintenance service.
