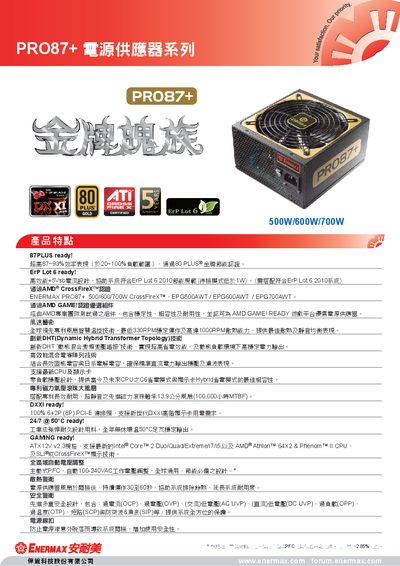

The ENERMAX PRO87+ series offers 500‑700 W power supplies with 87‑93 % efficiency, 80 PLUS Gold certification and comprehensive protection features.
The ENERMAX PRO87+ series includes 500 W, 600 W and 700 W power supplies designed for high‑performance gaming and workstation PCs. They feature active PFC, 87‑93 % efficiency across the load range and 80 PLUS Gold certification, meeting ErP Lot 6 2010 energy‑saving standards.
Key technologies include a patented magnetic‑bearing fan with dynamic hybrid transformer (DHT) topology, a hybrid capacitor array combining solid‑state and Japanese electrolytic caps, and extensive protection circuits (OCP, OVP, UVP, OPP, OTP, SCP, SIP). The units support the latest CPUs and GPUs, with 6+2‑pin PCI‑E connectors for high‑end graphics cards. This manual is written in Chinese.
| Wattage | 500W / 600W / 700W |
|---|---|
| Efficiency | 87~93 % (80 PLUS Gold) |
| Input Voltage | 100‑240 VAC, 50‑60 Hz |
| Protection Features | OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP, SIP |
| ErP Lot 6 Compliance | Active PFC with +5Vsb design, standby <1 W |
The units provide eight protection functions: over‑current (OCP), over‑voltage (OVP), AC under‑voltage (AC UVP), DC under‑voltage (DC UVP), over‑power (OPP), over‑temperature (OTP), short‑circuit (SCP) and surge‑in‑pulse (SIP).
They achieve 87‑93 % efficiency across the 20‑100 % load range and have earned the 80 PLUS Gold certification.
Yes, the design includes active PFC and a +5Vsb rail that keep standby power below 1 W, satisfying ErP Lot 6 2010 standards.
