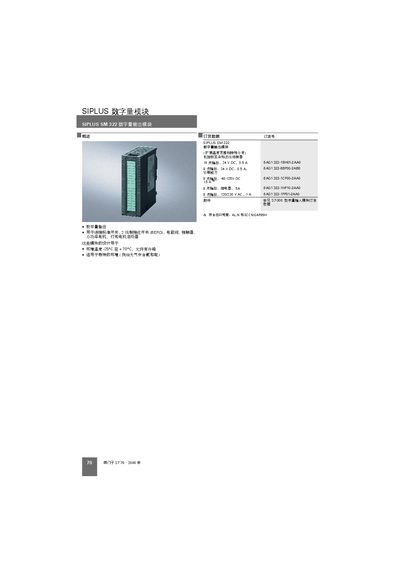

SIPLUS SM 322 digital output module is designed to connect standard switches, 2-wire proximity switches, solenoid valves, contactors, low-power motors, lamps, and motor starters. The module is suitable for operating in environmental temperatures ranging from -25°C to +70°C and is compatible with special environments containing chlorine and sulfur. The ordering data includes different specifications of output modules.
The SM322 is a Siemens SIPLUS digital output module offering multiple output configurations. It provides 16‑point, 8‑point, and 8‑point AC outputs with various voltage and current ratings for use with sensors, relays, contactors, low‑power devices, lamps and actuators.
The module complies with export regulations (EAR99) and operates in temperatures from -25 °C to +70 °C. It is suitable for integration in automation systems where reliable digital switching is required. This manual is written in Chinese.
| 16‑point output voltage/current | 24 VDC / 0.5 A |
|---|---|
| 8‑point output voltage range | 48‑125 VDC |
| 8‑point AC output voltage/current | 120/230 VAC / 1 A |
| Operating temperature range | -25 °C to +70 °C |
The 16‑point output provides 24 VDC at 0.5 A.
The module can operate from –25 °C up to +70 °C.
