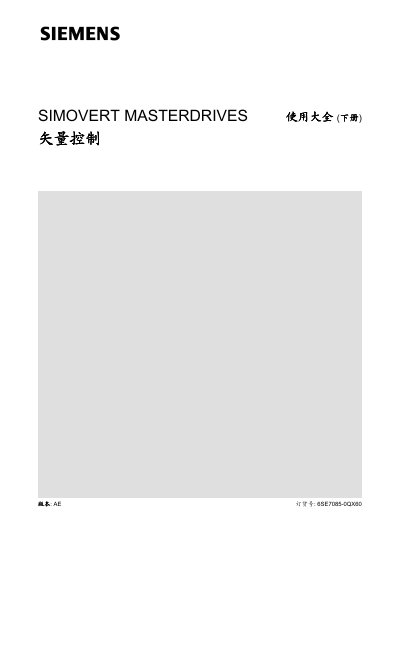

This manual introduces the use of Siemens MASTERDRIVES vector control.
The document is a comprehensive usage guide for the SIMOVERT MASTERDRIVES vector‑control system (model 6SE7085-0QX60). It is intended for technicians and engineers who work with the device running software version V3.3 and covers configuration, operation and troubleshooting.
The guide includes detailed sections on control word and status bit definitions, function block diagrams, a complete parameter list, fault and alarm descriptions, stored motor tables, mechanical drawings, startup procedures and an errata list. It also provides contact information for Siemens service and training resources. This manual is written in Chinese.
| Software version | V3.3 |
|---|---|
| Supported voltage range (3‑phase) | 380 V‑480 V AC |
| Supported voltage range (3‑phase) | 500 V‑600 V AC |
| Supported voltage range (3‑phase) | 660 V‑690 V AC |
| Order number | 6SE7085-0QX60 |
The guide is intended for devices running software version V3.3.
Control word bit 0 is the start/stop command (ON/OFF) for the inverter.
Control word bits are defined from bit 0 up to bit 22.
