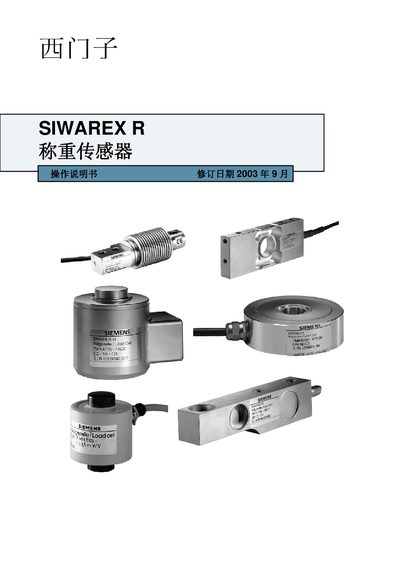

Siemens SIWAREX R Weighing sensor operation manual, introduces product installation, assembly, commissioning, maintenance, technical data and other information
This manual covers all aspects of the SIWAREX R weight sensor, from safety precautions and intended use to detailed technical description. It explains the sensor’s structure, system configuration, and the required environmental conditions.
The document also includes step‑by‑step installation and assembly guidance, commissioning procedures, maintenance and troubleshooting advice, as well as full technical specifications and ordering information for different sensor variants. This manual is written in Chinese.
| Rated load | 10 t (up to 300 t depending on model) |
|---|---|
| Cable type (standard) | 4‑line cable (shielded 6‑line cable optional) |
| Construction material | High‑quality steel, fully sealed |
Only qualified personnel may install and connect the sensor.
Use a shielded 6‑line cable such as Li2Y (ST) CY 6×0.75 mm², Siemens part number 7MH4 702‑8AB.
Rated loads range from 10 t to 300 t depending on the specific model series.
