RN2221~RN2227 are silicon PNP transistors produced by Toshiba. They have the characteristics of large current drive, low voltage saturation voltage, and low static power consumption.
This datasheet provides the key electrical parameters and maximum ratings for the Toshiba RN2221‑RN2227 series of PNP transistors. The document includes collector‑base and collector‑emitter voltage limits, current capabilities, power dissipation, and temperature ranges.

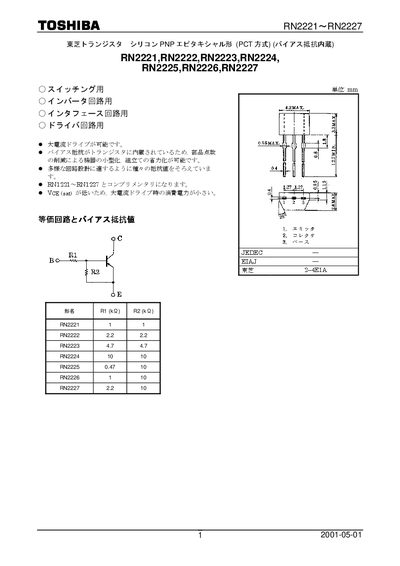

Additional information covers the equivalent circuit with built‑in bias resistors, recommended usage notes, and handling guidelines for reliable circuit design. This manual is written in Japanese.
| Maximum Collector Current (Ic) | 800 mA |
|---|
The maximum collector current is 800 mA.
