DF5A6.2CJE is an ESD protection diode produced by Toshiba. It has the characteristics of small size, small inter-terminal capacitance and low cost.
The DF5A6.2CJE is an ESD‑protective Zener diode offered by Toshiba. It is supplied in a compact 4‑element SOT‑23 package with a low junction capacitance of 25 pF, making it suitable for applications that require space‑saving and low parasitic effects.

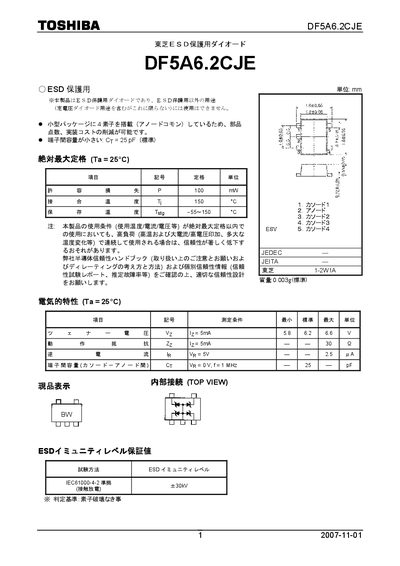

The document lists absolute maximum ratings, typical electrical parameters, and important handling notes, including a 20 kV ESD immunity level (IEC‑61000‑4‑2) and a recommended operating temperature range of –55 °C to +150 °C. Users are advised to follow Toshiba’s reliability guidelines when the device is used under high‑stress conditions. This manual is written in Japanese.
| Zener voltage (Vz) at Iz=5 mA | 5.8 – 6.6 V |
|---|---|
| Dynamic resistance (Zz) at Iz=5 mA | 30 Ω |
| Junction capacitance (CT) at 1 MHz | 25 pF |
| Maximum power dissipation (Pmax) | 100 mW |
| Storage temperature range | –55 °C to +150 °C |
| Package weight | 0.008 g |
The diode can dissipate up to 100 mW.
