SMS0606 LCD display module is a product produced by Changsha Sunman Electronics Co., Ltd. It has a wide voltage operating range, low power consumption, and is connected to MCU single-chip microcomputers via a three-wire serial interface.
The Sunman SMS0606 is a 6‑digit LCD display module with six segment indicators and one decimal point. It operates over a wide voltage range and uses a low‑power three‑wire serial interface, making it suitable for embedded systems such as smart gas meters.

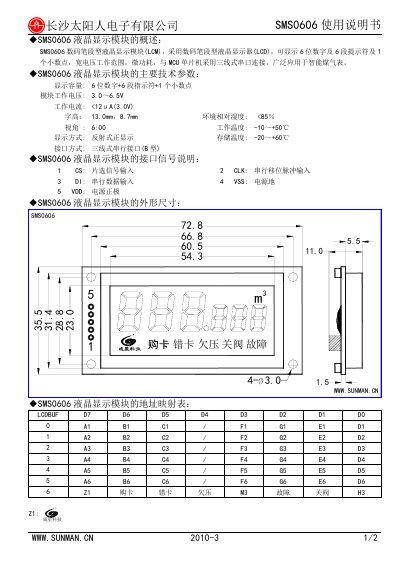

The manual provides technical specifications, pin‑out descriptions, dimensions, and an address mapping table, along with reference links to the manufacturer's website. This manual is written in Chinese.
| Display capacity | 6 digits, 6 segment indicators, 1 decimal point |
|---|---|
| Operating voltage | 3.0 V ~ 6.5 V |
| Operating current | <12 µA (at 3.0 V) |
| Size | 13.0 mm × 8.7 mm |
| Operating temperature | -16 °C ~ +55 °C |
| Storage temperature | -40 °C ~ +85 °C |
| Display mode | Reflective positive display |
| Interface type | Three‑wire serial interface (type e) |
The module works from 3.0 V up to 6.5 V.
It can show 6 digits, 6 segment indicators, and 1 decimal point.
It uses a three‑wire serial interface (type e).
The module measures 13.0 mm by 8.7 mm.
