SMS0658B digital pen segment LCD display module adopts digital pen segment LCD display, can display 6 digits and 5 decimal points, low power consumption, and is widely used in handheld instruments and intelligent display meters.
The SMS0658B is a digital LCD display module that can show six digits and five decimal points. It operates with low power consumption and connects to an MCU via a three‑wire serial bus, making it suitable for portable and smart instruments.

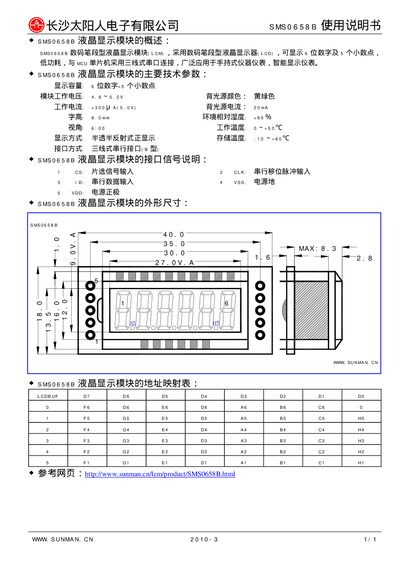

The document provides key technical parameters, pin‑mapping, interface signal definitions and the module's mechanical dimensions, along with a brief overview of its backlight and operating conditions. This manual is written in Chinese.
| Character height | 8.0 mm |
|---|---|
| Display capacity | 6 digits + 5 decimal points |
It uses a three‑wire serial interface.
It can display six digits and five decimal points.
