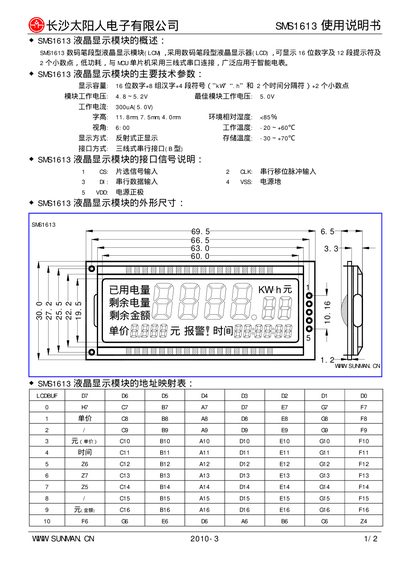

SMS1613 liquid crystal display module user manual, which introduces the module overview, main technical parameters, interface signal description, external dimensions, address mapping table and other contents in detail.
The SMS1613 is a 16‑digit LCD display module with additional status characters and four symbols. It offers a reflective display type and supports low‑power operation with a typical supply of 5 V.
The manual lists technical parameters such as operating voltage (4.8‑5.2 V), current consumption (30 µA), viewing angle (6°), temperature ranges, and a 3‑wire serial interface (type B) with signals CS, OLK, DI, VSS and VDD. Physical dimensions and a character‑mapping table are also included. This manual is written in Chinese.
| Display capacity | 16 digits + status characters + 4 symbols |
|---|---|
| Operating voltage | 4.8 V – 5.2 V (typical 5.0 V) |
| Current consumption | 30 µA at 5.0 V |
| Character height | 11.8 nm / 7.5 nm / 4.0 nm |
| Operating temperature | -20 °C – +40 °C |
| Storage temperature | -30 °C – +70 °C |
| Display type | Reflective |
| Interface | 3‑wire serial (type B) |
| Interface signals | CS, OLK, DI, VSS, VDD |
| Physical dimensions | ≈ 69.5 mm × 6 mm × 5 mm |
The module operates from 4.8 V to 5.2 V, with a typical voltage of 5.0 V.
It can show 16 numeric digits together with status characters and four additional symbols.
The display uses a 3‑wire serial interface (type B) with signals CS, OLK, DI, VSS and VDD.
The module works from –20 °C up to about +40 °C.
