SMS0526 LCD display module is a digital pen segment LCD display module for intelligent gas meters, which can display 5 digits and 4 segments of Chinese characters and 1 decimal point, with wide voltage working range, micro power consumption, and two-line serial port connection with MCU MCU.
The SMS0526 is a liquid crystal display module capable of showing five numeric digits, four alphabetic characters and one decimal point. It operates over a wide voltage range, consumes low power and connects to an MCU via a two‑wire serial interface, making it suitable for smart meters and household appliances.

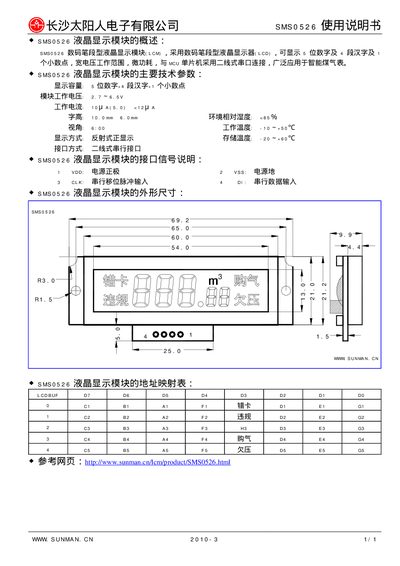

The manual lists the module's technical parameters, interface signal definitions, physical dimensions and pin mapping, offering the necessary information for integration and troubleshooting. This manual is written in Chinese.
| Display capacity | 5位数字, 4段字, 1小数点 |
|---|---|
| Operating voltage | s.7 ~-s.sy |
| Operating current | 10H A(5.0) <12HA |
| Character height | 1o onmm 6.omm |
| Interface type | 二銭式串行接口 |
| Dimensions | 69.2 mm × 65.0 mm × 60.0 mm |
It uses a two‑wire serial interface.
It can display five digits, four letters, and one decimal point.
The module measures approximately 69.2 mm × 65.0 mm × 60.0 mm.
