SMS0694 is a digital pen segment LCD display module that uses a digital pen segment LCD display. It can display 6-digit numbers and 2 time separators. It has the characteristics of low power consumption and can be connected to MCU single-chip microcontrollers using a three-wire serial interface. It is widely used in handheld instruments and intelligent display instruments.
The SMS0694 is a matrix LCD display module that can show six numeric characters and two indicator symbols. It is intended for portable devices and smart instruments that need a low‑power, wide‑voltage display.

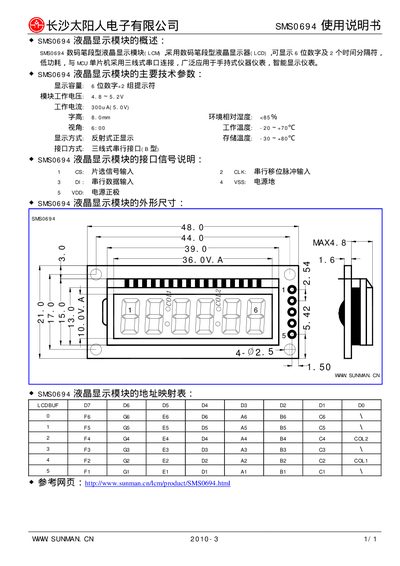

The module uses a three‑wire serial interface (CS, CLK, DI) to connect to an MCU, operates from 4.8 V to 5.2 V with a typical current of 300 µA at 5 V, and works in temperatures from –20 °C to +70 °C (storage –30 °C to +80 °C). The display size is 8.0 mm and the pinout is clearly listed in the manual. This manual is written in Chinese.
| Supply current | 300 µA (at 5.0 V) |
|---|
