SLET1000-B field data acquisition server, which can connect up to 70 nodes, with a maximum node number of 100, each node with a maximum of 24 channels, and the device supports a total of 300 channels. The instrument communicates with the upper computer via RS232.

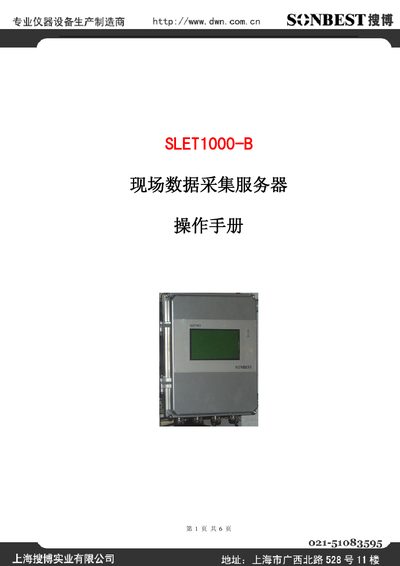

This manual describes the SONBEST SLET1000-B data collection server, a device that gathers and transmits data from up to 70 points with a maximum of 300 channels. It outlines the system’s key features, such as a large LCD display, long‑distance communication up to 10 km, and safety‑isolated compartments.
The document includes technical parameters, wiring diagrams, power and communication interface specifications, and installation guidelines. It also provides safety precautions and troubleshooting tips for proper operation in industrial environments. This manual is written in Chinese.
| Model | SLET1000-B |
|---|---|
| Maximum Points | 70 |
| Maximum Point IDs | 100 |
| Channels per Point | 24 |
| Total Channels | 300 |
| Baud Rate | 19200 bps |
| Communication Ports | CAN, RS485 |
| Power Supply | DC 24 V 1 A |
| Power Consumption | 5‑15 W |
| Weight | 3000 g |
| Operating Temperature | 20 °C – 80 °C |
| Storage Temperature | -40 °C – +85 °C |
| Maximum Cable Length | 10 km |
| Dimensions (L×W×H) | 200 mm × 70 mm × 175 mm |
It can connect up to 70 data points.
The device supports CAN and RS485 interfaces.
It requires a DC 24 V, 1 A power supply.
The default baud rate is 19200 bps.
