The SLST1-13 aircraft-type temperature sensor uses a metal aircraft connector, which is suitable for fixed installation occasions. The front end has a thread and can be fastened. The internal sensor uses a metal gasket process, the sensor sensitivity is high, and the temperature delay is very small.
The SLST1-15 is a bearing‑specific temperature sensor that uses a DS18B20 digital sensor housed in a 304 stainless‑steel shell with IP67 protection. It offers high sensitivity, minimal temperature lag, and a 1‑Wire digital interface for reliable data transmission in harsh environments.

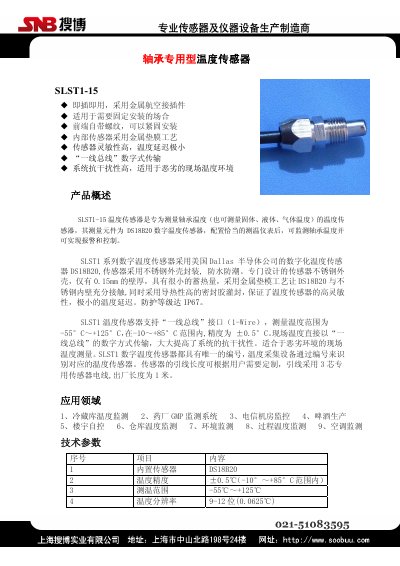

The manual details the sensor’s technical parameters, wiring pin definitions, and step‑by‑step installation procedures, including mounting the sensor head, securing the wiring, and connecting to a secondary measuring instrument. It also includes ordering information and a list of related sensor models. This manual is written in Chinese.
| Built‑in sensor | DS18B20 |
|---|---|
| Temperature accuracy | ±0.5°C (-10°C~+85°C) |
| Measurement range | -55°C~+125°C |
| Resolution | 9‑12 bits (0.0625°C) |
| Measurement speed | 750 ms (12‑bit) |
| Power supply | 3 V‑5.5 V |
| Supported cable length | >100 m |
| Operating environment | -55°C~+80°C |
| Material | 304 stainless steel |
| Protection rating | IP67 |
The sensor can measure temperatures from -55 °C to +125 °C.
It offers an accuracy of ±0.5 °C within the -10 °C to +85 °C range.
The sensor operates on a supply voltage of 3 V to 5.5 V.
The sensor supports communication cable lengths greater than 100 meters.
